Nylon swivel castor braked with top plate - 200mm - 400kg

140 x 110 mm 400 kg 200 mm

unfortunately, this product is out of stock.

  • SKU: NY4-200
  • Out of stock

£ 12.38 (14.86 Incl. VAT)

  • UK delivery in 1 - 3 Days Tooltip You will receive a track and trace e-mail
  • Specialized tailor-made advice
  • 2 Year warranty
  • 90 Day money back guarantee

Product description

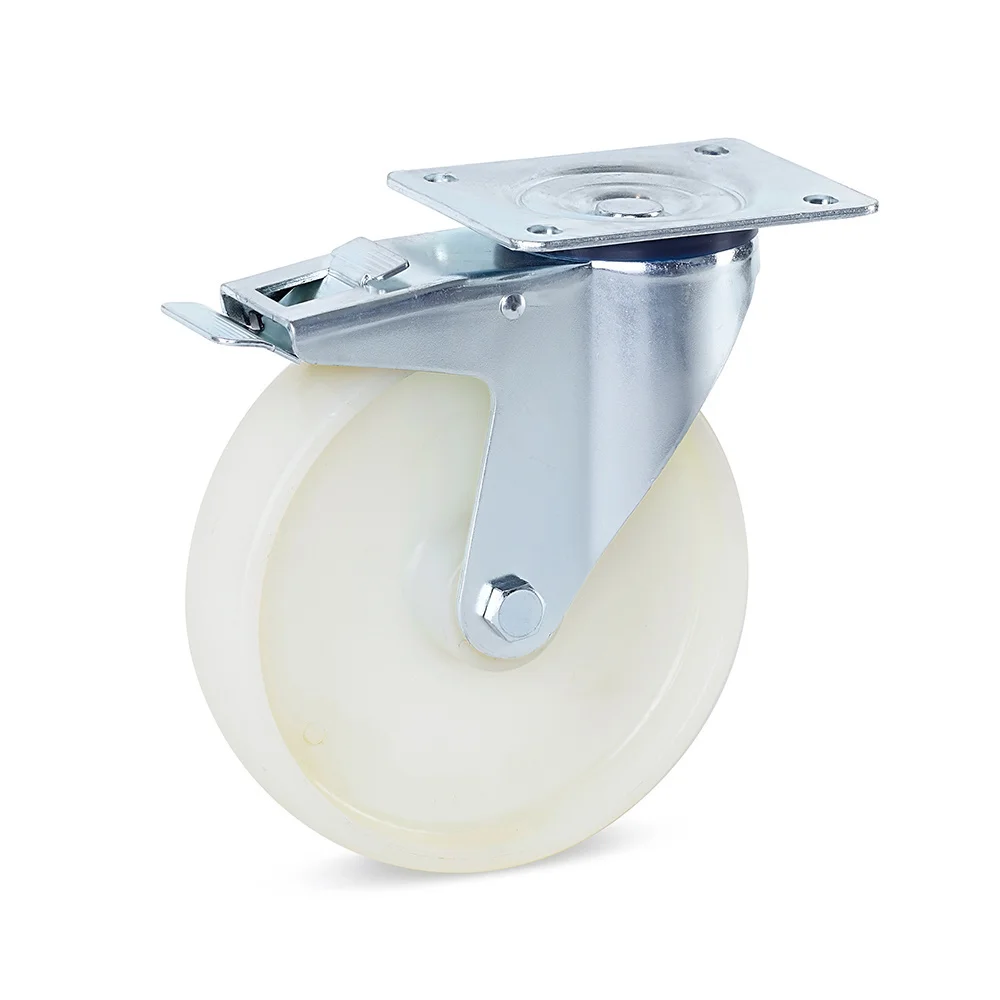

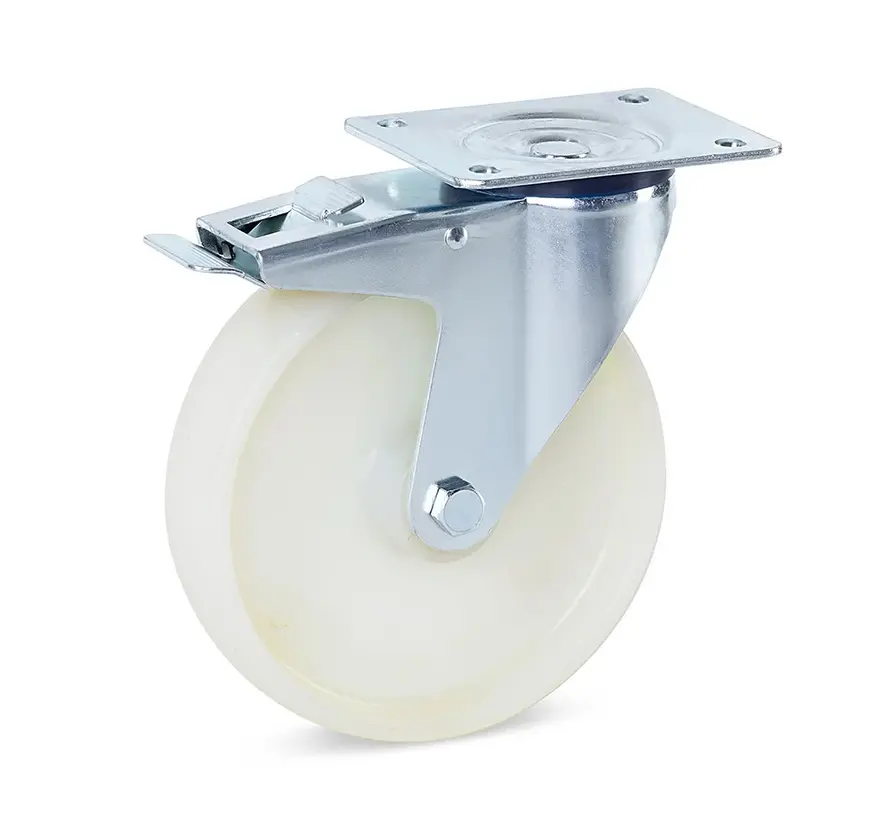

Nylon swivel castor braked with top plate - 200mm - 400kg

This nylon castor with brake has a diameter of 200 mm and a load capacity of 400 kg. This wheel is made entirely of nylon and is therefore excellent for driving on hard and flat surfaces, with low rolling resistance.

Read the full product description

This nylon swivel castor is double braked, which means that both the wheel and the direction of rotation are blocked when on the brake.

This wheel has a top plate, this allows this wheel to be easily fixed with 4 bolts.

Nylon or Polyamide castors are very wear-resistant, have a high load capacity and good rolling resistance, less suitable for uneven floors and thresholds, see PU castors or Elastic rubber castors.

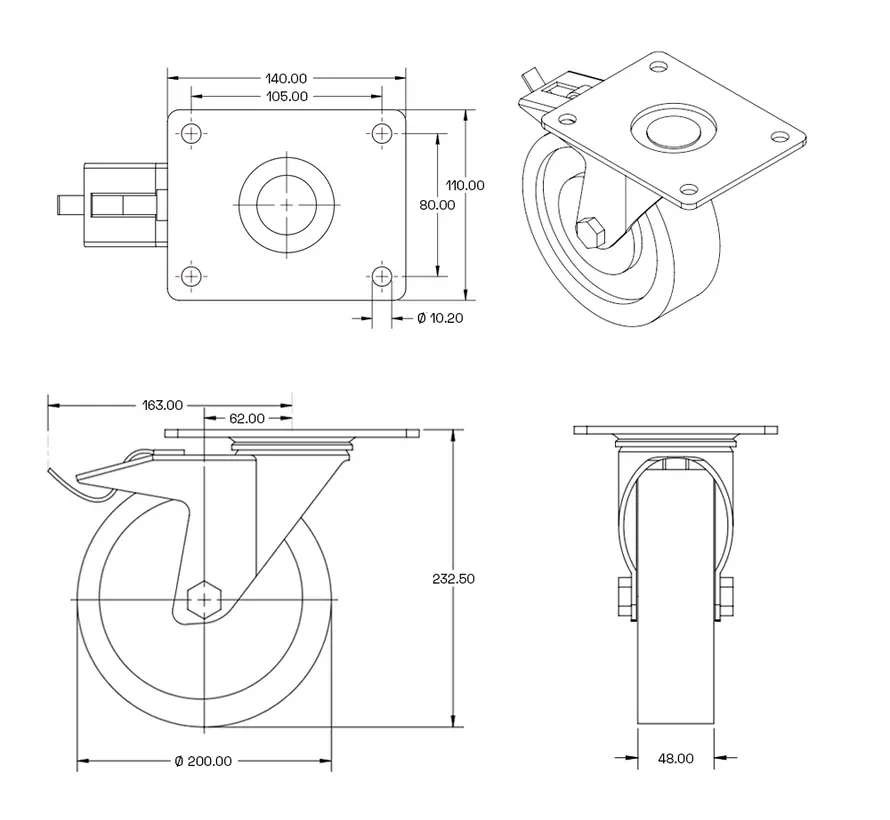

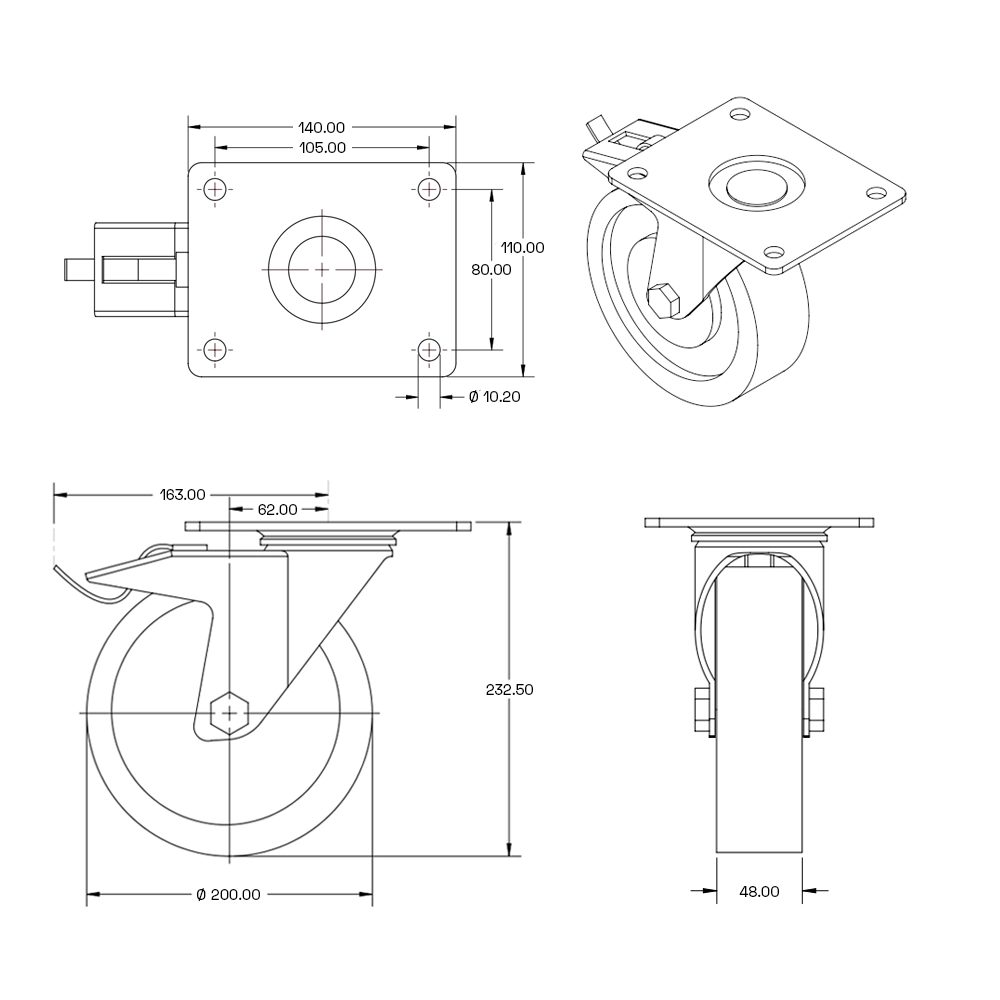

Specifications

Specifications for: Nylon swivel castor braked with top plate - 200mm - 400kg

  • Wheel Hardness Hard
  • Wheel Type Braked swivel castor - top plate
  • Bearing Roller bearing
  • Total Height 232 mm
  • Boltholes Centre to Centre 105 x 80 mm
  • Topplate 140 x 110 mm
  • Wheel centre Nylon
  • Tread Nylon
  • Load Capacity 400 kg
  • Tread width 48 mm
  • Diameter 200 mm
  • Material housing High-grade galvanised steel
  • Swivel radius brake pedal 163 mm
  • Centre mounting plate - centre Wheel 130 mm
  • Fixing Bolthole 10 mm
