Nylon heavy duty swivel castor braked with top plate - 200mm - 800kg

135 x 110 mm 800 kg 200 mm

Order before 12 pm, shipped same day

  • SKU: ZNY4-200
  • In stock

£ 45.57 (54.68 Incl. VAT)

  • UK delivery in 1 - 3 Days Tooltip You will receive a track and trace e-mail
  • Specialized tailor-made advice
  • 2 Year warranty
  • 90 Day money back guarantee

Product description

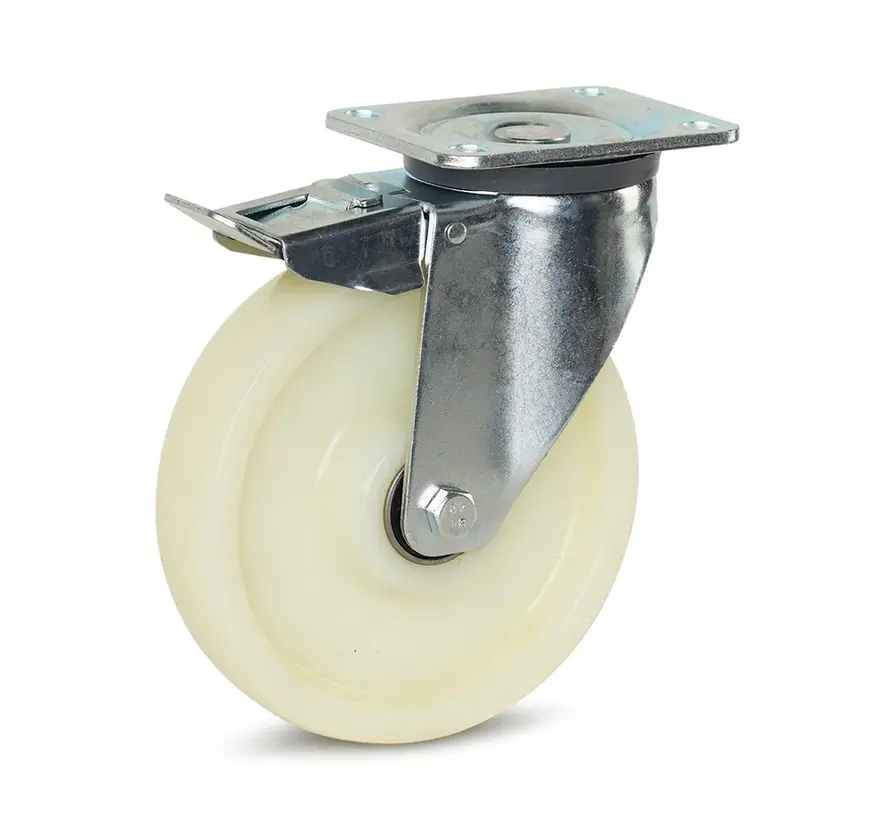

Nylon heavy duty swivel castor braked with top plate - 200mm - 800kg

Heavy duty swivel castor with brake of excellent quality, has a diameter of 200 mm and a load capacity of 800 kg per wheel. The heavy duty castor is made of all nylon and very suitable for smooth floors.

Read the full product description

Our nylon heavy duty castors are of excellent quality, RoHS compliant, the tyre is made of nylon and therefore these heavy duty castors are well suited for extra-heavy transport or carrying loads over level surfaces, such as in warehouses and sheds. And suitable for heavy transport applications such as hard stone/granite and heavy construction.

For uneven floors and outdoor use, we recommend our PU heavy duty castors.

This swivel castor with brake has a top plate, this allows the wheel to be easily fixed with 4 bolts.

This swivel castor has double brakes, which means that once the wheel is on the brake, both the wheel and the direction of rotation are blocked.

Under related products you can see the swivel and fixed castors with which this braked swivel castor can be excellently combined, as they have the same dimensions.

Specifications

Specifications for: Nylon heavy duty swivel castor braked with top plate - 200mm - 800kg

  • Wheel Hardness Hard
  • Wheel Type Braked swivel castor - top plate
  • Bearing Double ball bearing
  • Total Height 241 mm
  • Boltholes Centre to Centre 105 x 80 mm
  • Topplate 135 x 110 mm
  • Wheel centre Nylon - Polyamide
  • Tread Nylon - Polyamide
  • Load Capacity 800 kg
  • Tread width 50 mm
  • Diameter 200 mm
  • Swivel radius brake pedal 150 mm
  • Centre mounting plate - centre Wheel 55 mm
  • Fixing Bolthole 12 mm
