Grey plastic swivel castor braked with top plate - 100mm - 100kg

77 x 67 mm 100 kg 100 mm

  • SKU: PC4-100G
  • In stock

£ 9.95 (11.94 Incl. VAT)

  • Specialized tailor-made advice
  • 2 Year warranty
  • 90 Day money back guarantee

Product description

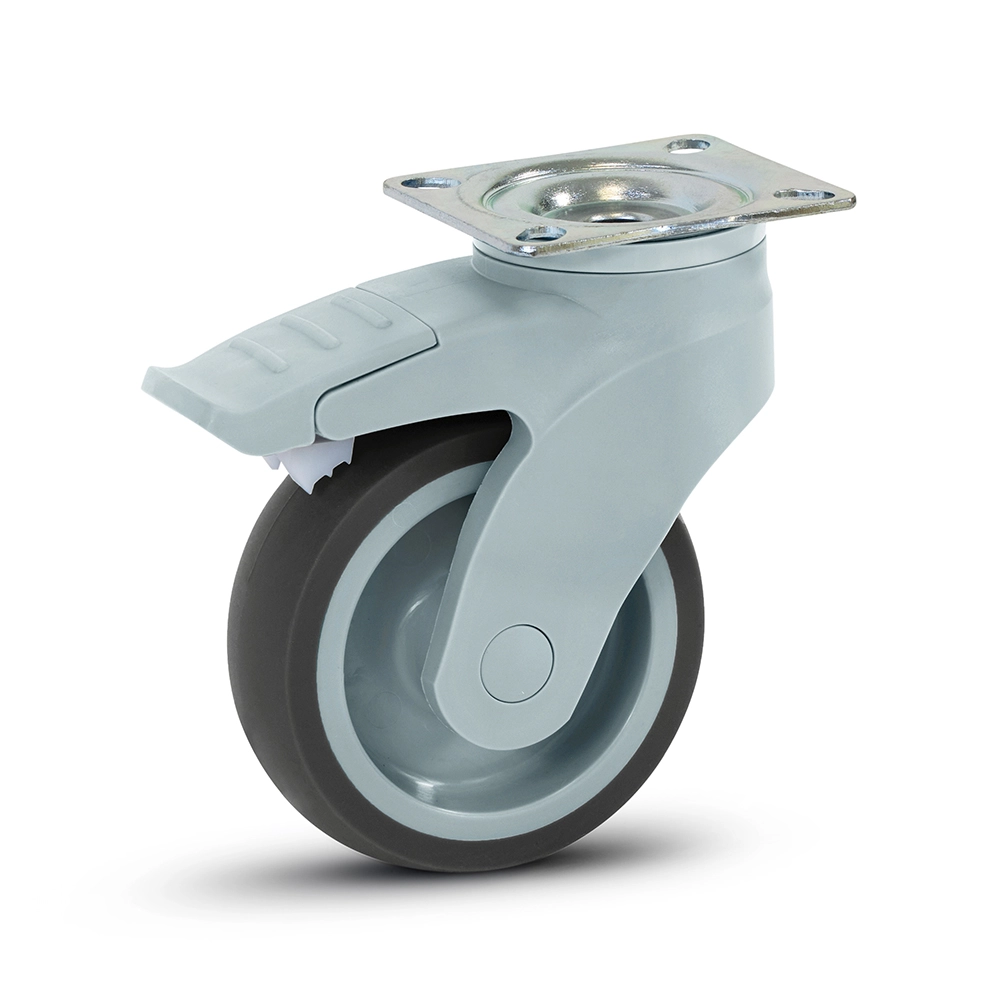

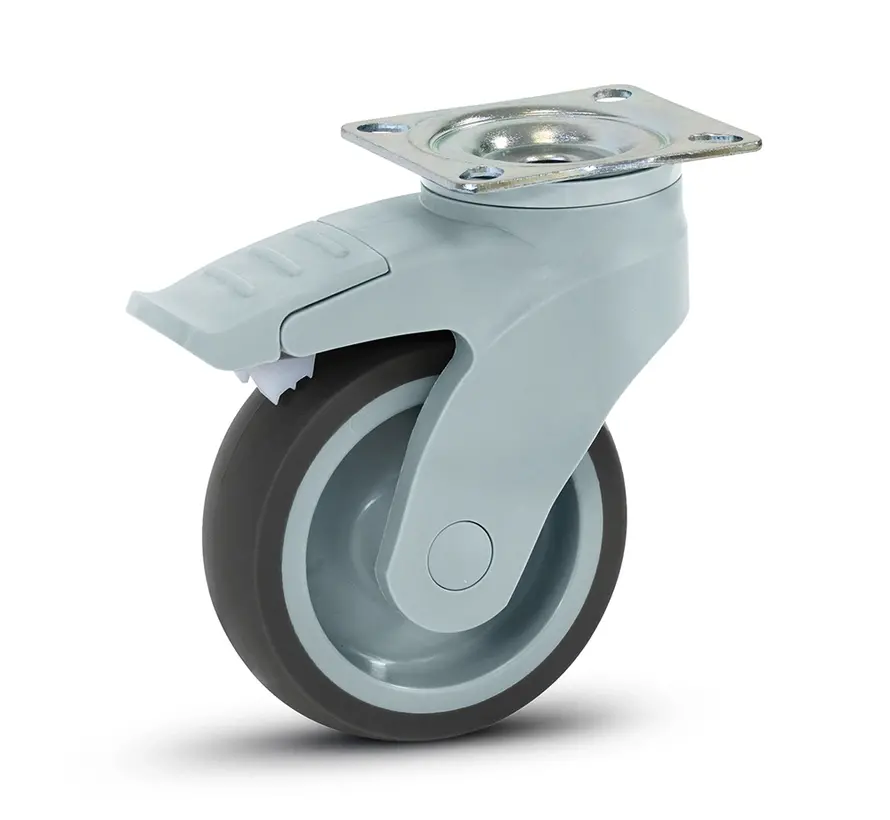

Grey plastic swivel castor braked with top plate - 100mm - 100kg

This grey braked swivel castor with top plate has a diameter of 100 mm and a load capacity of 100 kg. The tyre is made of thermoplastic rubber and the wheel body of polypropylene.

Read the full product description

The combination of smooth ride and sturdy construction makes this wheel ideal for everyday use. The soft treads ensure a quiet and comfortable ride, without leaving scratches or streaks. Thanks to the top-plate mounting, mounting is easy and the wheel can be used immediately. The wheel is particularly suitable for use in brakes, offering reliability and stability. With these features, this wheel offers a durable and practical solution for both private and professional use.

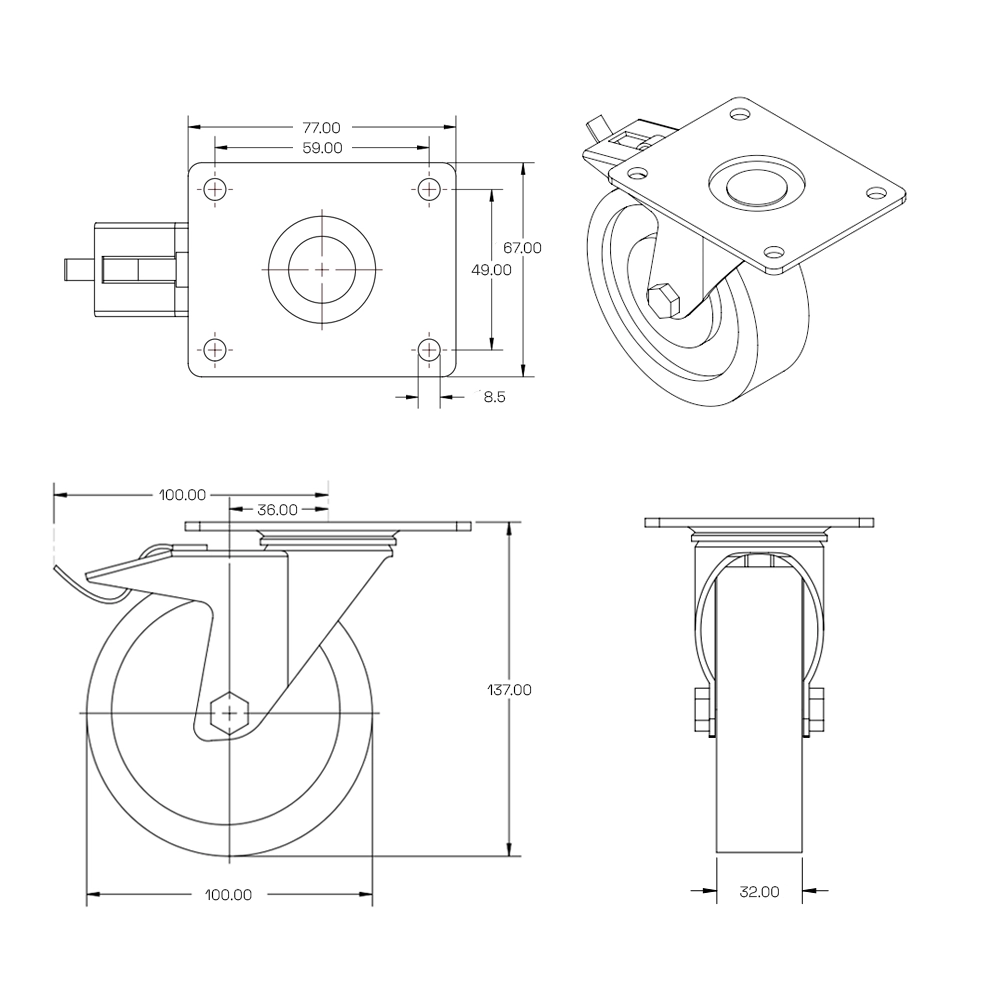

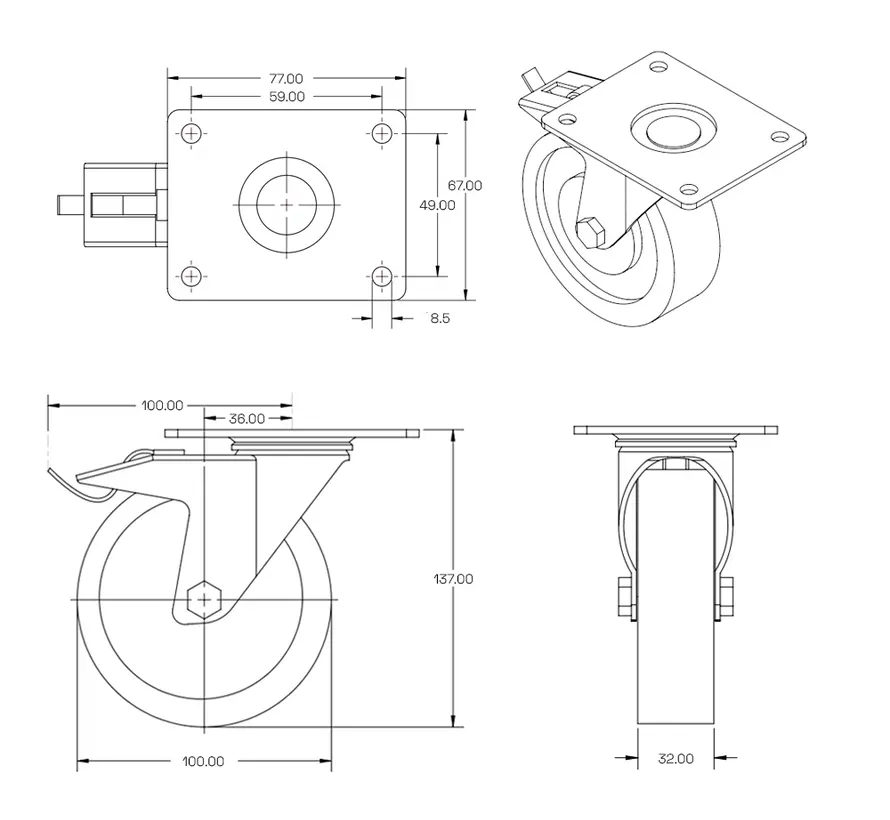

Specifications

Specifications for: Grey plastic swivel castor braked with top plate - 100mm - 100kg

  • Wheel Hardness Soft
  • Wheel Type Braked swivel castor - top plate
  • Bearing Sliding bearing
  • Total Height 137 mm
  • Boltholes Centre to Centre 59 x 49 mm
  • Topplate 77 x 67 mm
  • Wheel centre Polypropylene
  • Tread TPR
  • Load Capacity 100 kg
  • Tread width 32 mm
  • Hub width 36 mm
  • Bore diameter without bushing 12.2 mm
  • Bore diameter with bushing 8.5 mm
  • Diameter 100 mm
  • Material housing Plastic
  • Swivel radius brake pedal 100 mm
  • Centre mounting plate - centre Wheel 36 mm
  • Fixing Bolthole 8.5 mm
