Double PU extra heavy duty swivel castor braked with top plate - 150mm - 1250kg

170 x 170 1250 kg 150 mm

  • SKU: DEPU4-150
  • In stock

£ 95.29 (114.35 Incl. VAT)

  • Specialized tailor-made advice
  • 2 Year warranty
  • 90 Day money back guarantee

Product description

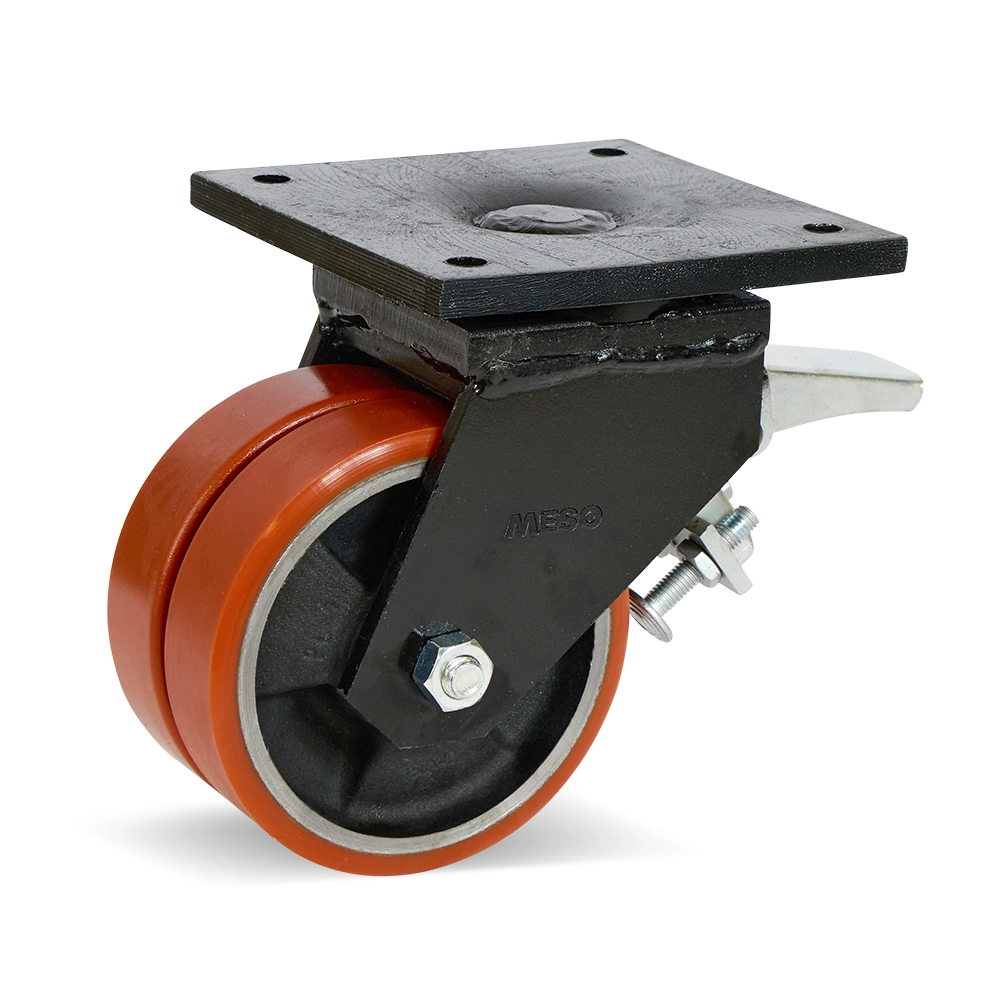

Double PU extra heavy duty swivel castor braked with top plate - 150mm - 1250kg

For Heavy Duty Industrial Applications

The double PU extra heavy duty castor with brake and top plate is designed for use under heavy transport equipment, platforms and machinery. The double wheel construction provides extra stability and even weight distribution. Thanks to the integrated brake, the wheel remains safely in place during standstill. This wheel is ideal for intensive daily use in demanding industrial environments.

Durable Structure & Reliable Performance

The wheel is constructed with a strong core and a hard-wearing polyurethane tread layer. This combination ensures quiet, smooth running and reduces wear on the floor. With a wheel diameter of 150 mm and a load capacity of 1250 kg per wheel, this model delivers excellent performance. Each wheel is designed for maximum reliability, longevity and efficiency.

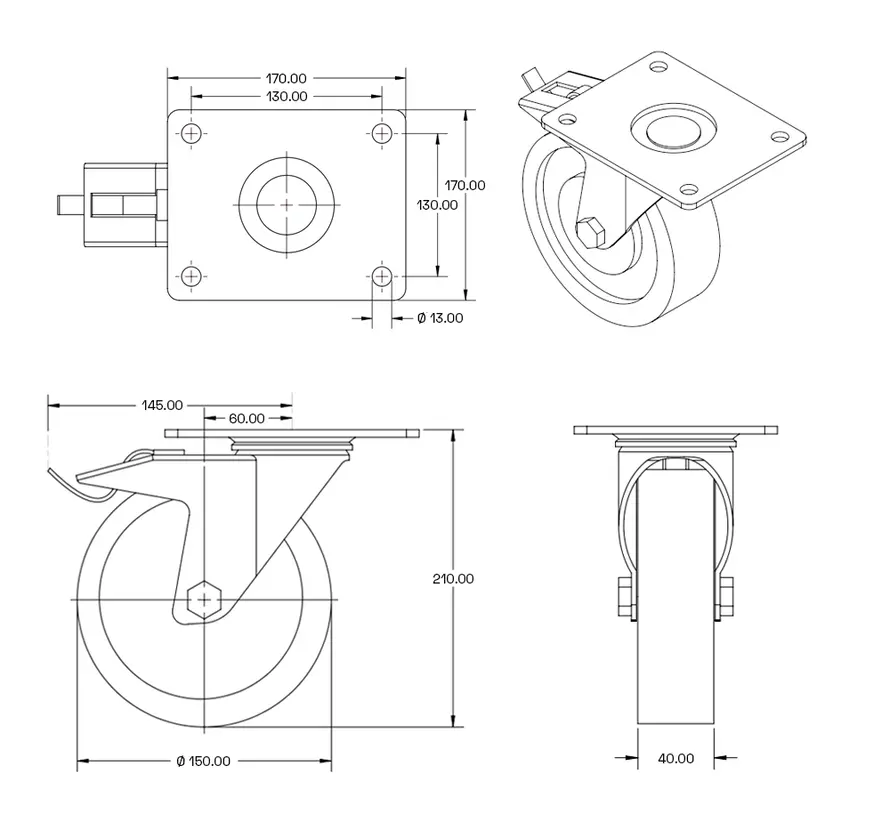

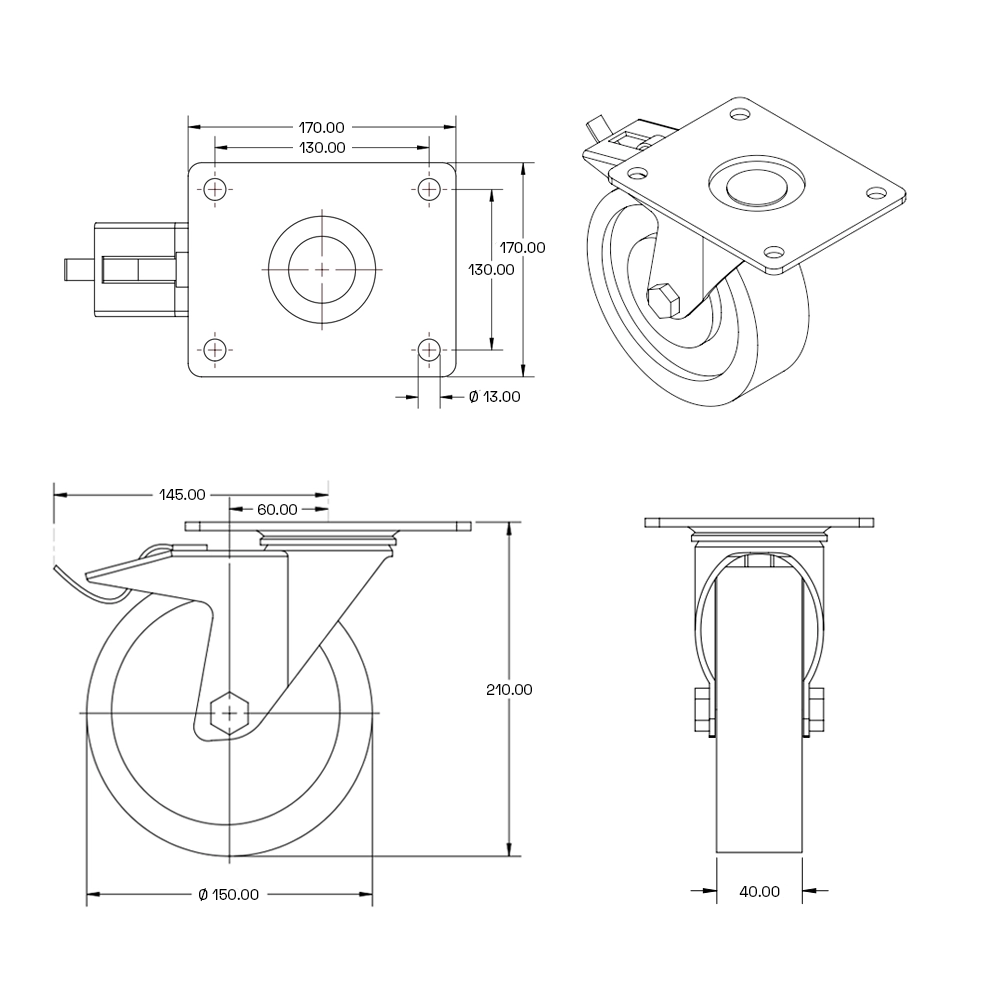

Specifications

Specifications for: Double PU extra heavy duty swivel castor braked with top plate - 150mm - 1250kg

  • Wheel Hardness Medium Hard
  • Wheel Type braked swivel castor - top plate
  • Bearing Double ball bearing
  • Total Height 210 mm
  • Boltholes Centre to Centre 130 x 130
  • Topplate 170 x 170
  • Wheel centre Cast iron
  • Tread PU - Polyurethane
  • Load Capacity 1250 kg
  • Hub width 40 mm
  • Bore diameter without bushing 20 mm
  • Bore diameter with bushing 14 mm
  • Diameter 150 mm
  • Material housing High-grade galvanised steel
  • Swivel radius brake pedal 50 mm
  • Fixing Bolthole 13 mm
