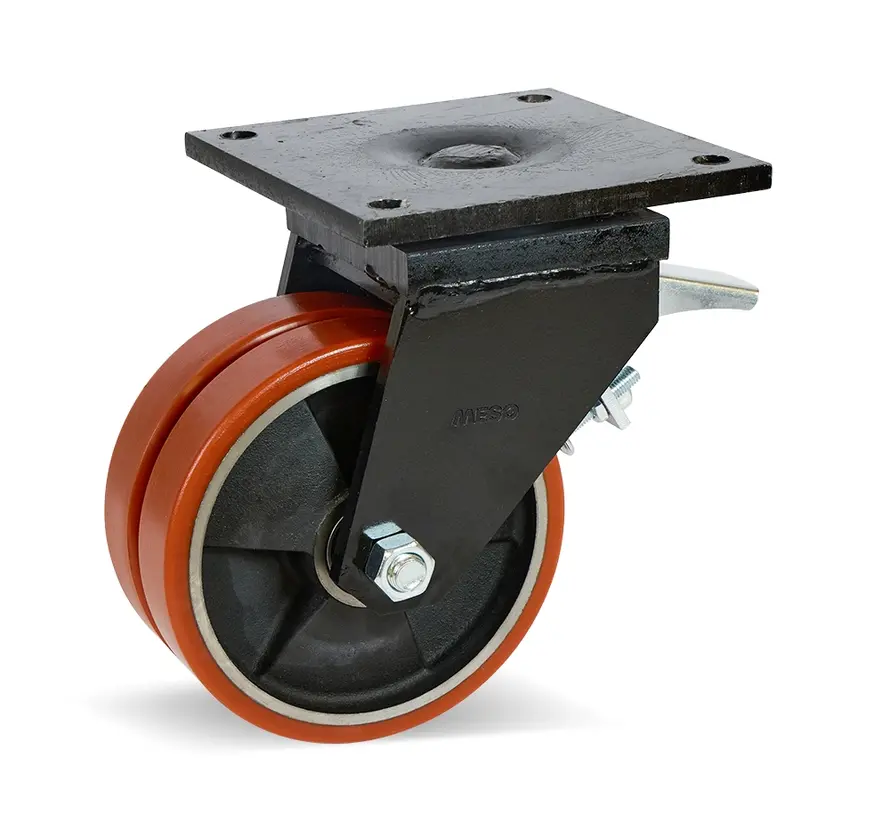

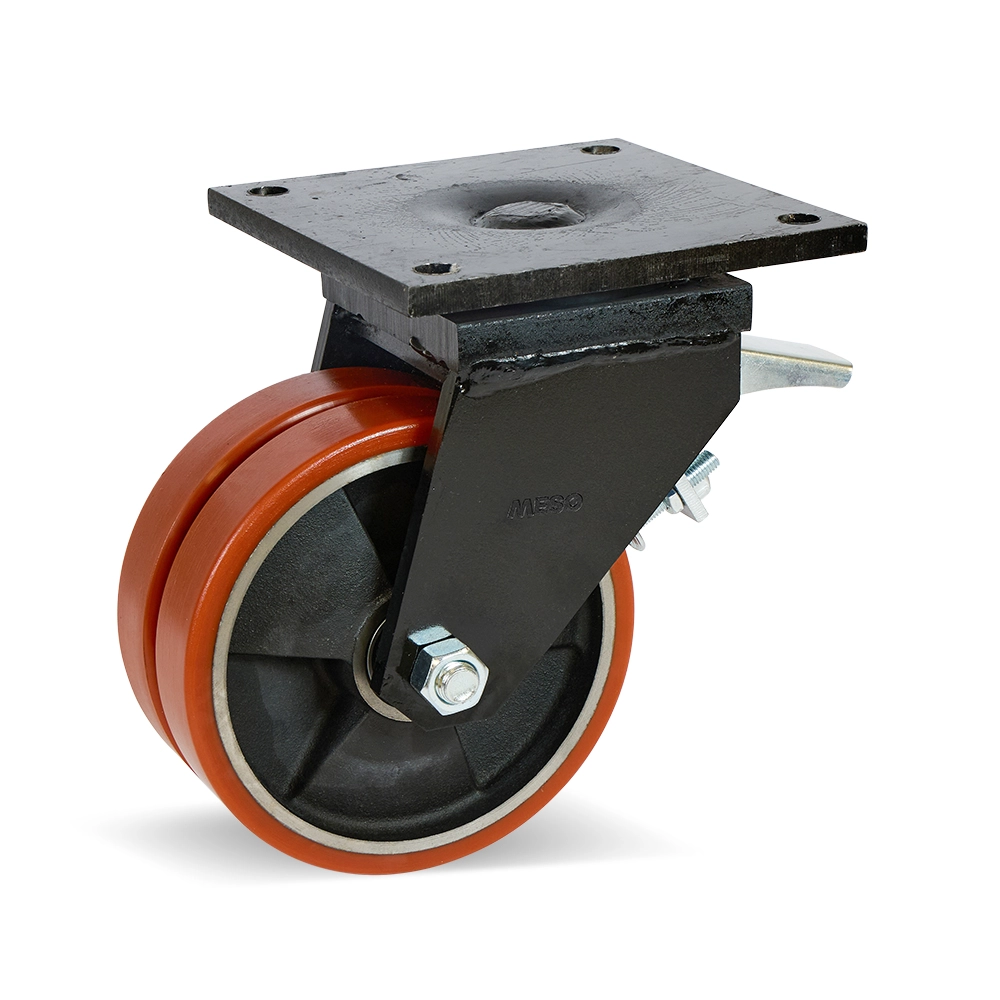

Double PU extra heavy duty swivel castor braked with top plate - 200mm - 2200kg

200 x 200 2200 kg 200 mm

  • SKU: DEPU4-200
  • In stock

£ 133.60 (160.33 Incl. VAT)

  • Specialized tailor-made advice
  • 2 Year warranty
  • 90 Day money back guarantee

Product description

Double PU extra heavy duty swivel castor braked with top plate - 200mm - 2200kg

Suitable for Heavy Duty Applications

The double PU extra heavy duty swivel castor braked with top plate is designed for demanding industrial applications where stability and strength are essential. It is ideally suited for mounting under heavy transport equipment, platforms or stationary machines. An excellent choice for warehouses, workshops and other environments where heavy loads are moved daily.

Robust Construction

The wheel is constructed of high-quality materials with a durable core and a hard-wearing tread that can withstand long-term heavy use. The quiet, smooth running increases comfort and reduces surface wear. With a wheel diameter of 150 mm and a load capacity of 1250 kg per wheel, this model offers optimum efficiency and reliability.

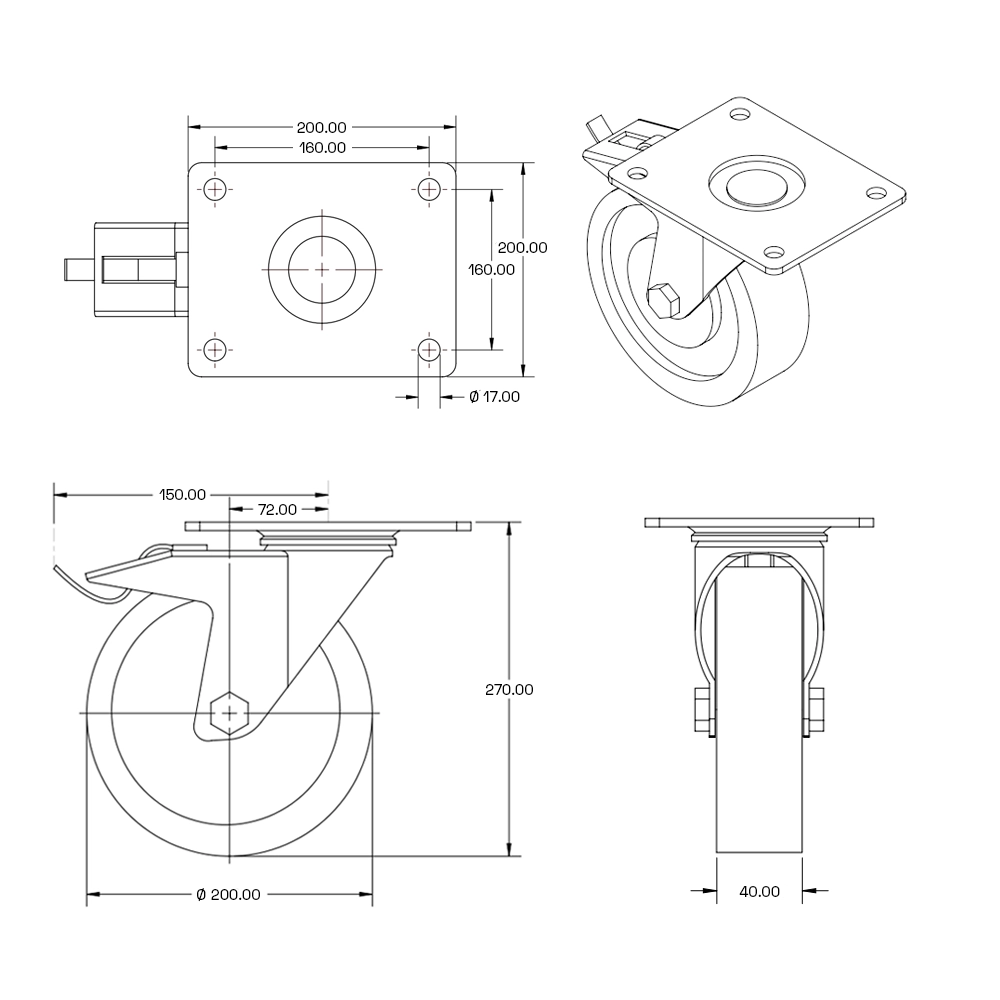

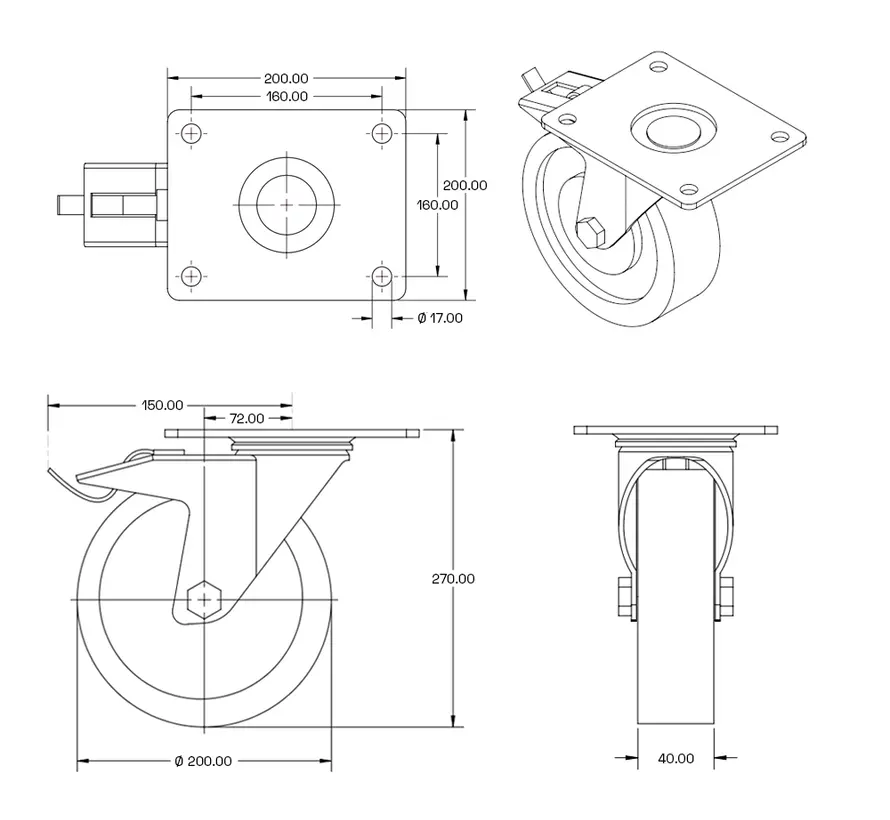

Specifications

Specifications for: Double PU extra heavy duty swivel castor braked with top plate - 200mm - 2200kg

  • Wheel Hardness Medium Hard
  • Wheel Type braked swivel castor - top plate
  • Bearing Double ball bearing
  • Total Height 270 mm
  • Boltholes Centre to Centre 160 x 160
  • Topplate 200 x 200
  • Wheel centre Cast iron
  • Tread PU - Polyurethane
  • Load Capacity 2200 kg
  • Hub width 40 mm
  • Bore diameter without bushing 25 mm
  • Bore diameter with bushing 18 mm
  • Diameter 200 mm
  • Material housing High-grade galvanised steel
  • Swivel radius brake pedal 50 mm
  • Fixing Bolthole 17 mm
